Programmable Hydraulic Paper Cutting Machine | ZX-4300A (43")
Programmable Hydraulic Paper Cutting Machine | ZX-4300A (43") - Image 2
Programmable Hydraulic Paper Cutting Machine | ZX-4300A (43") - Image 3
Programmable Hydraulic Paper Cutting Machine | ZX-4300A (43") - Image 4

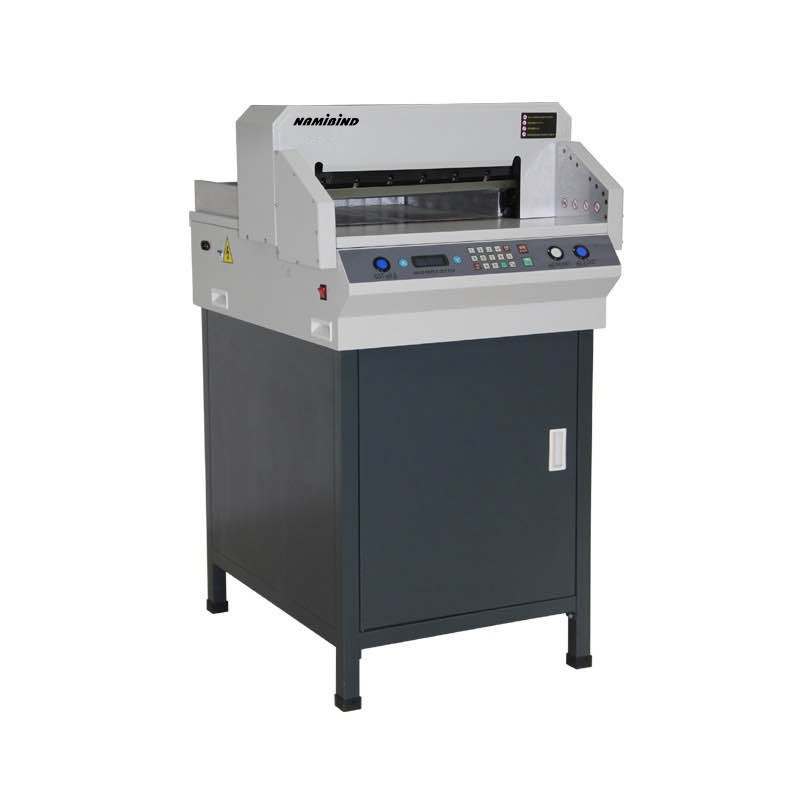

Programmable Hydraulic Paper Cutting Machine | ZX-4300A (43″)

Add to Wishlist
Compare
  • Automatic Grade
  • Programmable
  • German Technology
  • Accurate Cutting
  • All types of Papercutting
  • Available Size 33, 37, 43, 47



₹1,299,999.00 ₹1,899,999.00

Compare

It is a single-phase machine, and its Power capacity is 220 volts. The power source of this machine is electric. The cutting length behind this machine’s knife is very significant as it gives you a 1092mm cutting length behind the knife. With this machine, you get 0.3 mm Precision. It has an IR bar for safety purposes, and the total weight of this machine is 450kg.

How to use

No effort is required for using this machine. You can easily use this machine by following simple step. First, you have to restart the machine’s button then you have to select the size on which you want to cut your desire document. And after few minutes, you get accurate cuts of your document.

SKU: ZX-4300 Category: Tags: , , , , ,



Size 43″(1092mm)
Max. Cutting width 43″(1092)
Clutch & Adjustable Brake System Yes(Electro Magnetic)
Safety Device Photo Cell for hand safety
Motor Hp 3 HP
Knives 2 Special Knives (Diamond Edge Steel)
Type Programmable, Hydraulic
Max. Cutting width(1) 1″ (25mm) Hard Cardboard / Card Sheets
Max. Cutting width 2/3″ (50/75mm) Normal Regual Use paper
Front Plate SS Material
Clamp Pressure Max:-4000 Kgs, / Min:- 10 Kgs
Auto Measure Back Gauge System Yes
Forward and Reverse Yes
Maximum Cutting Height 5″ (127mm)
Power required 4.4 Kw
Feature Machine With Hydraulic Clamping Double Pressure Power
Knife Thickness 1/2″
table Height 35″
Floor Space 84×84″ (2134×3134)
Cutting Speed 40
Weight Apx 2200 Kgs
Motor Phase 3
